Mine lashing “Shaft”

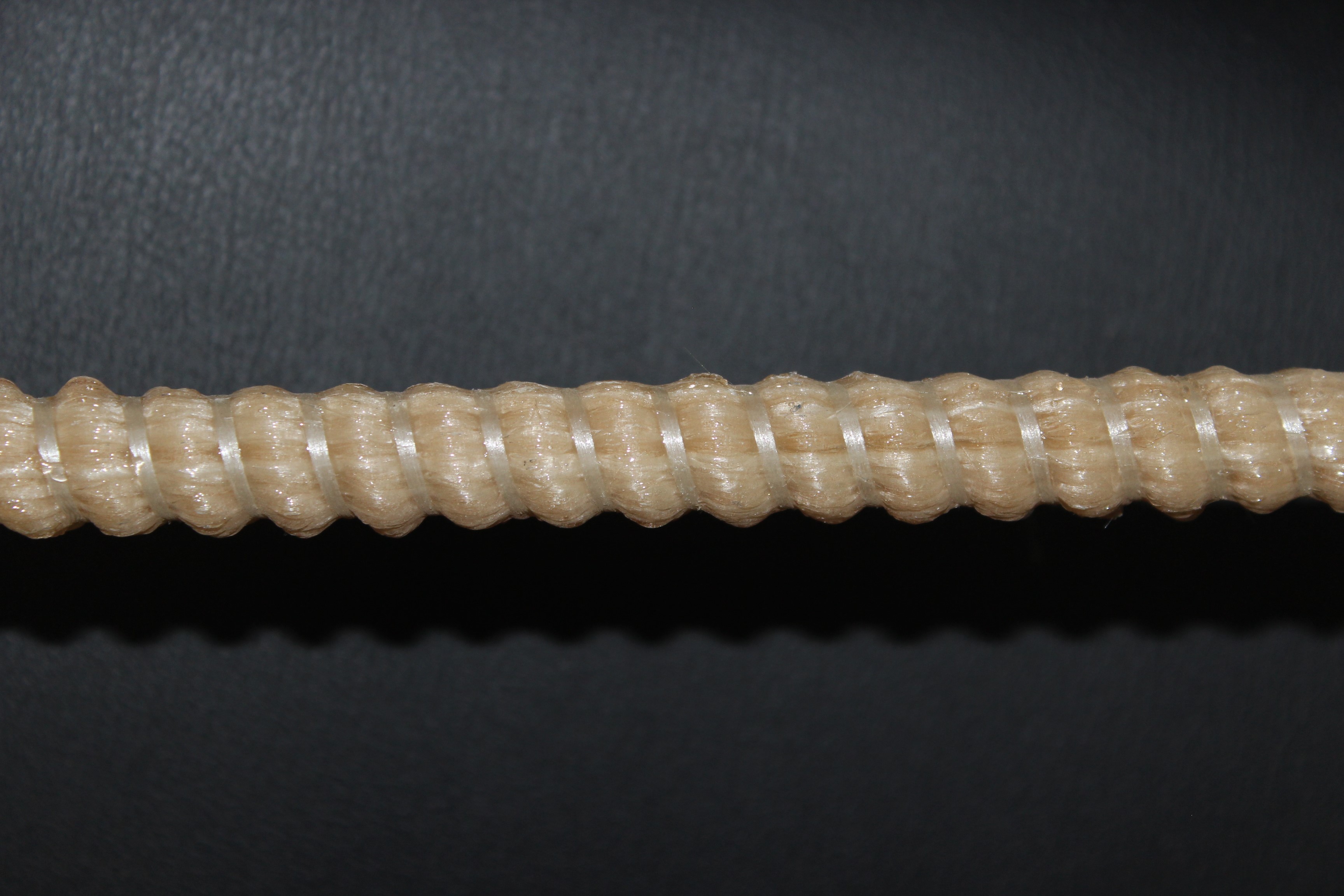

Line for the production of composite reinforcement with indented thread (shaft support).

Equipment for the production of fiberglass and basalt plastic reinforcement with a pressed thread into the body of the reinforcement.

Main technical characteristics of the line for the production of valves:

• Length – 42 meters;
• Width -1 meter;
• Installed power -30 kW;
• Number of personnel – 2 operators;
• Ventilation capacity – 2000 cubic meters per hour.

• For the production of composite reinforcement with a depressed thread, a support shaft: Track mechanism, tracks made of polyurethane. The mechanical clamping system of the tracks provides high traction and clamping characteristics. Four-channel polymerization, the use of thermoregulators allows for step-by-step heating. The presence of a PID controller allows the furnace to operate in the most optimal mode. The operating temperature of the furnaces is up to 400 °C. Stainless steel heating elements significantly increase the service life and reduce energy consumption. The heating chamber is sheathed with insulating materials, which eliminates the deformation of the furnace structure. The surface of the furnace is heated to 60 ° C;
• The heating system of the epoxy-polymer binder in the impregnation bath increases the service life of the finished mixture;
• The line is equipped with a roving preheating system. The rollers and guides that are in direct contact with the reinforcing bar during the production process are made of fluoroplast. Step adjustment via the operator panel;
• The volume of the epoxy resin bath is 8 liters;
• The possibility of quick replacement of the bath with an epoxy-polymer binder;
• The line is equipped with a liquid cooling system with a circulation pump. Adjustable feed rate of the reinforcing bar through the operator panel;
• High-precision pulse counter for measuring finished products setting the length of finished products via the operator panel;
• control of the number of cuts through the operator panel;
• continuous operation of flexible connections of the production line, the cutting device is equipped with guides for linear movement of the cutting block (with a return mechanism); there is a connector for an industrial vacuum cleaner. Automatic adjustment of the motor rotation speed through the operator panel for uniform tight winding of the twisted roving;
• allows you to control and set all the operating parameters of the equipment from the operator's console.

Specification:

1. Shelf
2. Impregnation bath for roving with heating

3. Remote control

4. Polymerization furnace Cooling

5. Bath

6. Pulling truck assembly

7. Thread winder on the armature body

8. Reception desk

9. Cutting unit

10.  Passport

11.  Manual

Materials used:

The warranty period of operation is 12 months.
The packaging and material consumption are detailed after the prepayment for the car. Training is included in the cost of the machine, as well as in the list of suppliers of the necessary raw materials.
