KSP-1000
For the production of MESH up to a width of 1000 mm.

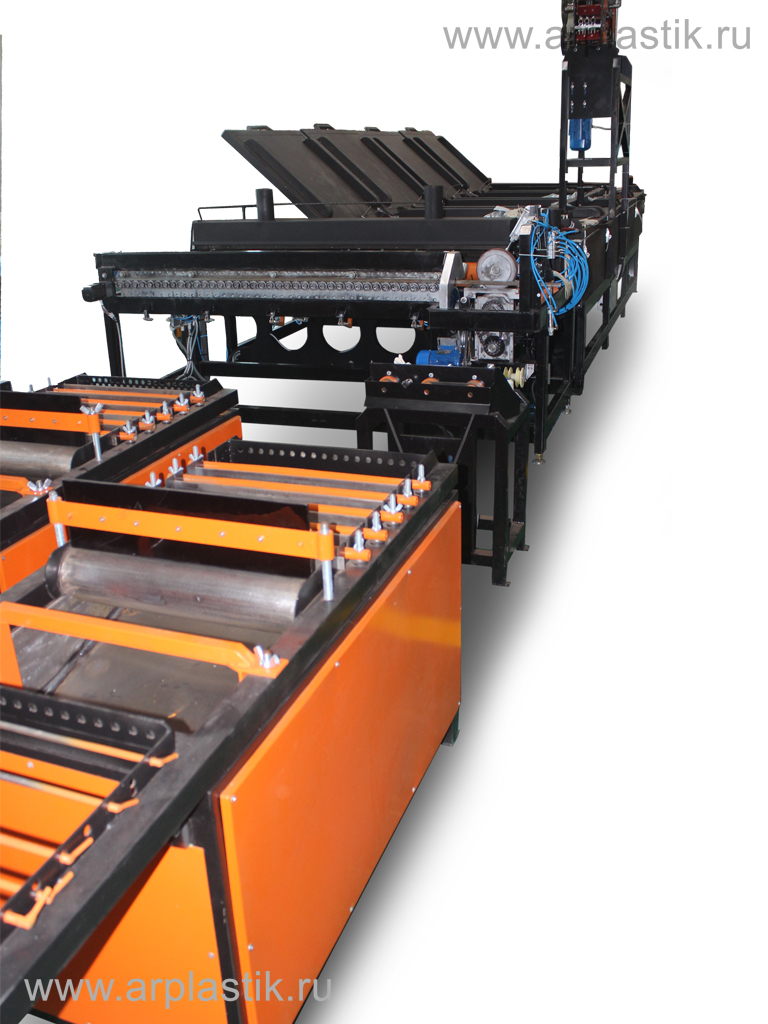

KSP-1000 production line (it is possible to produce mesh up to 1000 mm wide with 50 mm pitch or more).
KSP-1000 production line is designed for the production of composite mesh using glass and basalt roving.
1) Advantages of equipment:
Equipment is used for the production of twisted mesh.
Features of PCB lines:
In the complete set of the line there is a track pulling, which ensures parallelism and smoothness of the course of the formation of the grid, in contrast to the gross "pulling".
The width of the produced mesh is up to 1 meter, depending on the model.
Equipment is used for the production of twisted mesh.
Features of PCB lines:
- Mesh cell is formed as follows: transverse bar (horizontal bar) passes through the longitudinal bars, which are subsequently twisted. Due to this process, the connection is stronger than the conventional lap joint. An important difference of this line is that the transverse bar (horizontal bar) is produced immediately on the same line and is automatically fed during manufacturing of the mesh;
- It is easy to form cell sizes (50x70, 50x120, 100x50 mm) by simply pressing a button on the touchpad on the control panel. Longitudinal cell sizes have a pitch of 50 mm. Transverse cell size starts from 50 mm to 55, 60, 65, 90, 110 mm;
- To form bars with diameters from 2 to 8 mm;
- To produce twisted mesh with a mesh cell 50x50 or more according to the diameter of the bar:
In the complete set of the line there is a track pulling, which ensures parallelism and smoothness of the course of the formation of the grid, in contrast to the gross "pulling".
The width of the produced mesh is up to 1 meter, depending on the model.
2) Line parameters:
- Line length - 23m;
- Line width - up to 3.7 m;
- Line height - 2.5 m;
- Installed peak load power - 35 kW / h;
- Power consumption in operating mode - 25 -30 kW / h;
- Water consumption - 15 l / day (closed cycle);
- Air consumption - 150 l / h;
- Maximum mesh width – 1 m;
- Minimum mesh width - 0.2 m;
- Maximum mesh length - not limited.
Performance:
- 50x50 cell for 2.5 mm up to 60 m2 / hour
- 100x100 cell for 2.5 mm up to 90 m2 / hour
- 150x150 cell for 2.5 mm up to 90 m2 / hour
- 200x200 cell for 2.5 mm up to 90 m2 / hour
The produced diameter of the bar is from 2 mm to 8 mm. The performance depends only on the cell and the bar diameter of the produced mesh.
The warranty under the contract is 1 year.
The warranty under the contract is 1 year.
List of equipment supplied:

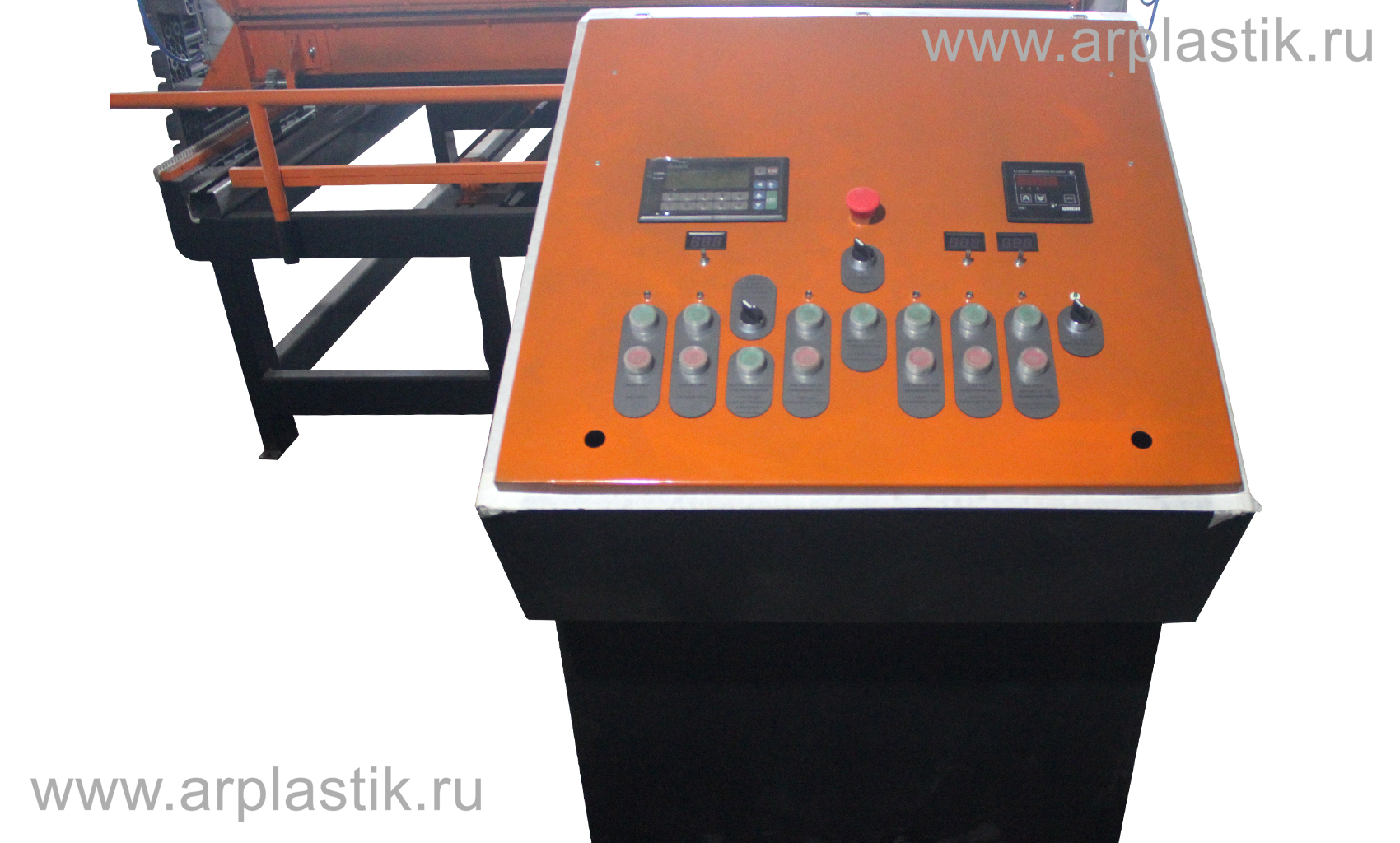

- Control Panel (1 pcs);

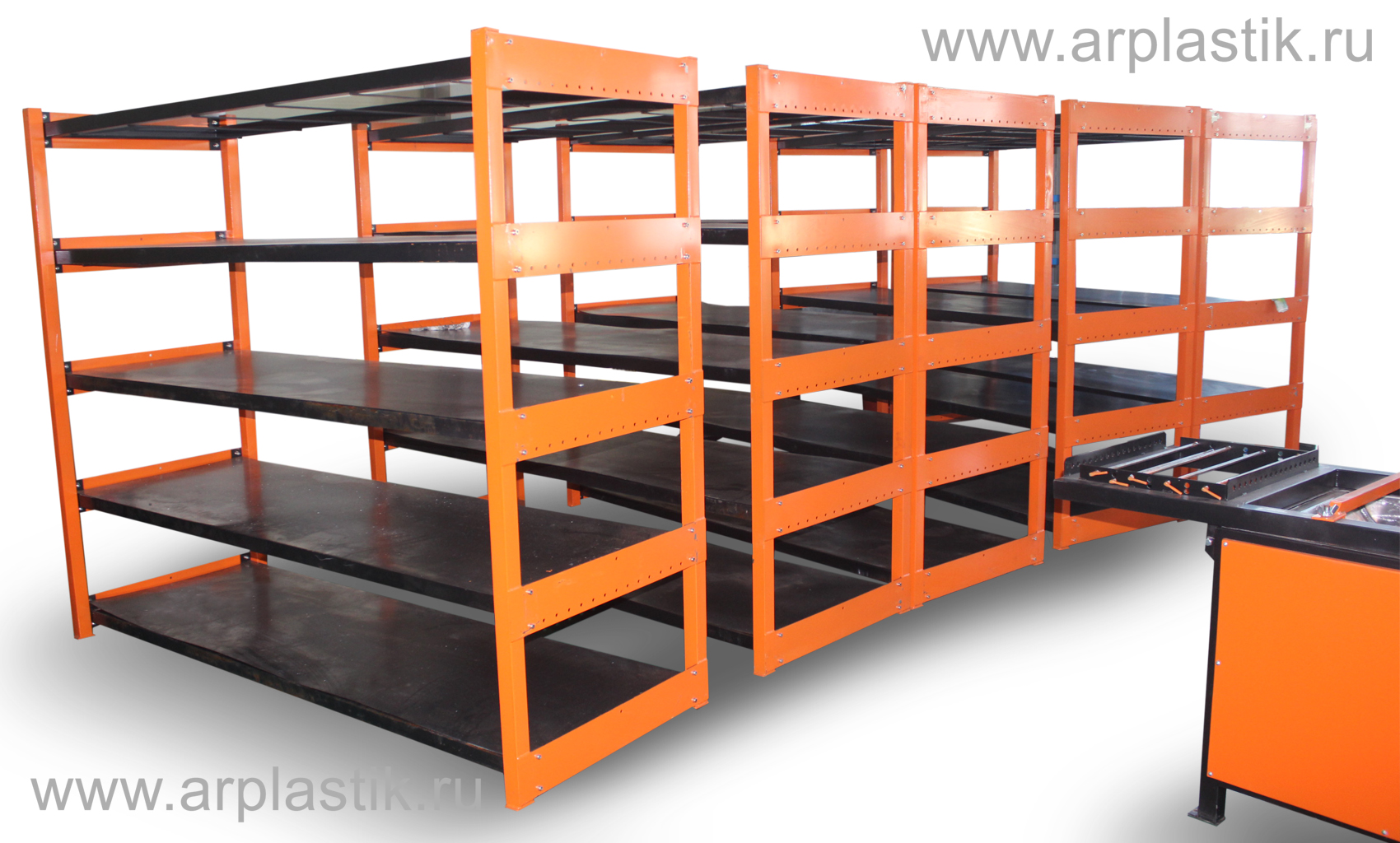

- Roving shelf (1 pcs);
- Impregnating bath with a tensioning device (2 pcs);
- Twisting unit (1 pcs);
- Polymerization chamber (1 pcs);

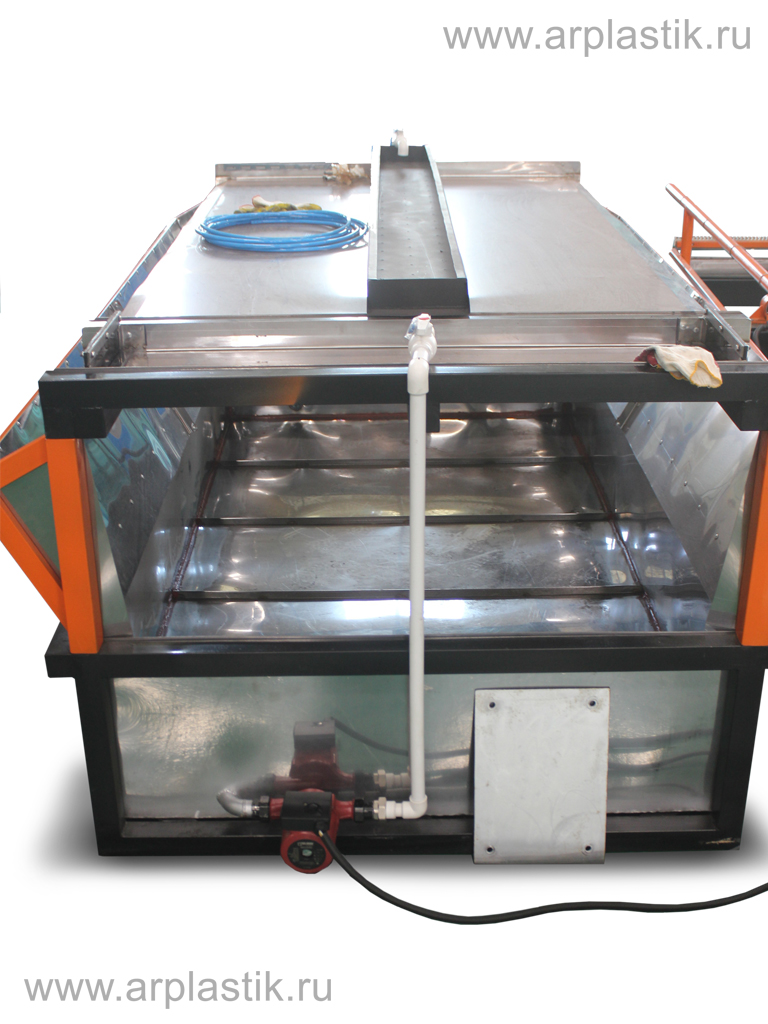

- Water cooling unit (1 pcs);
- Pulling device (1 pcs);

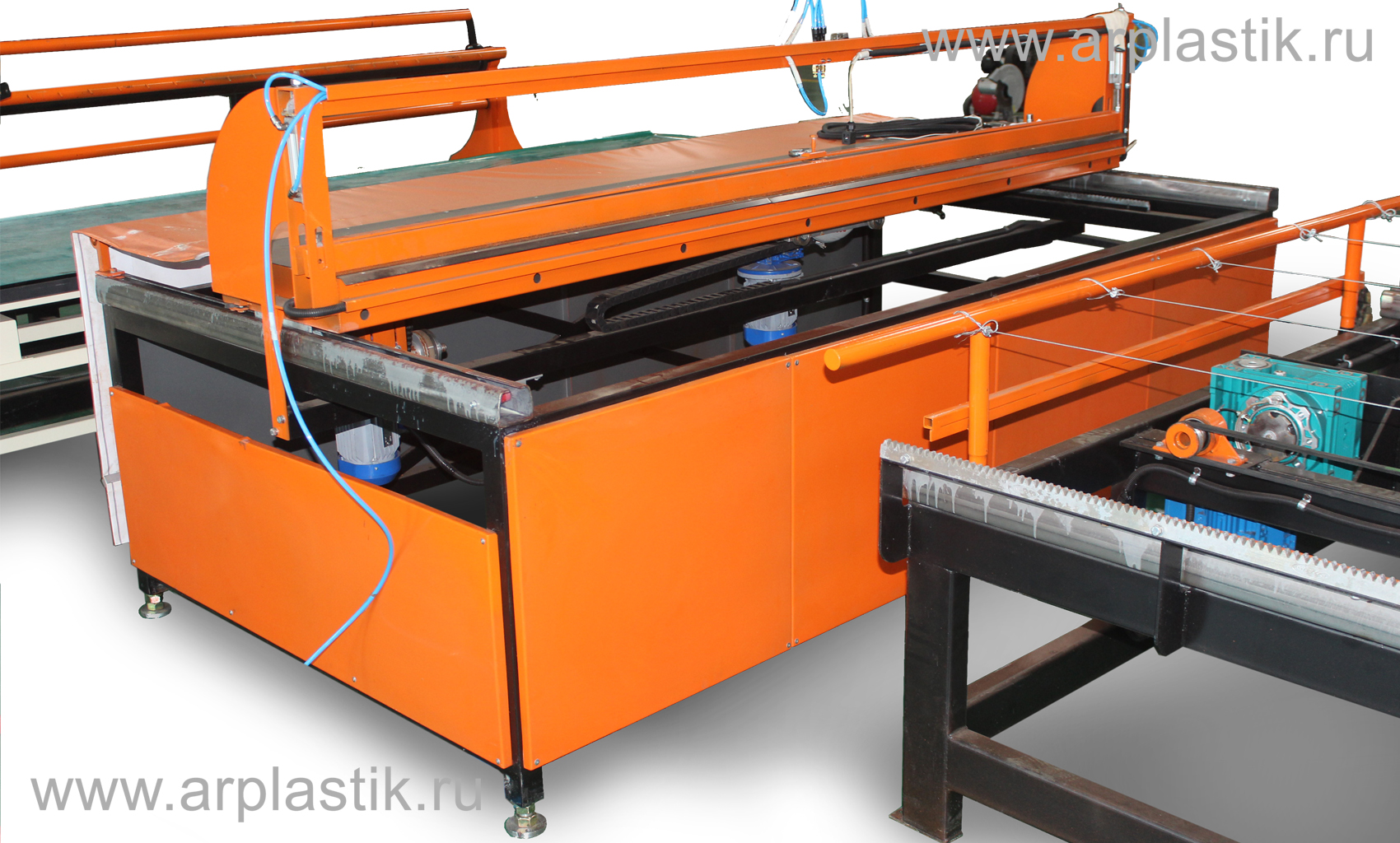

- Cutting unit (1 pcs);

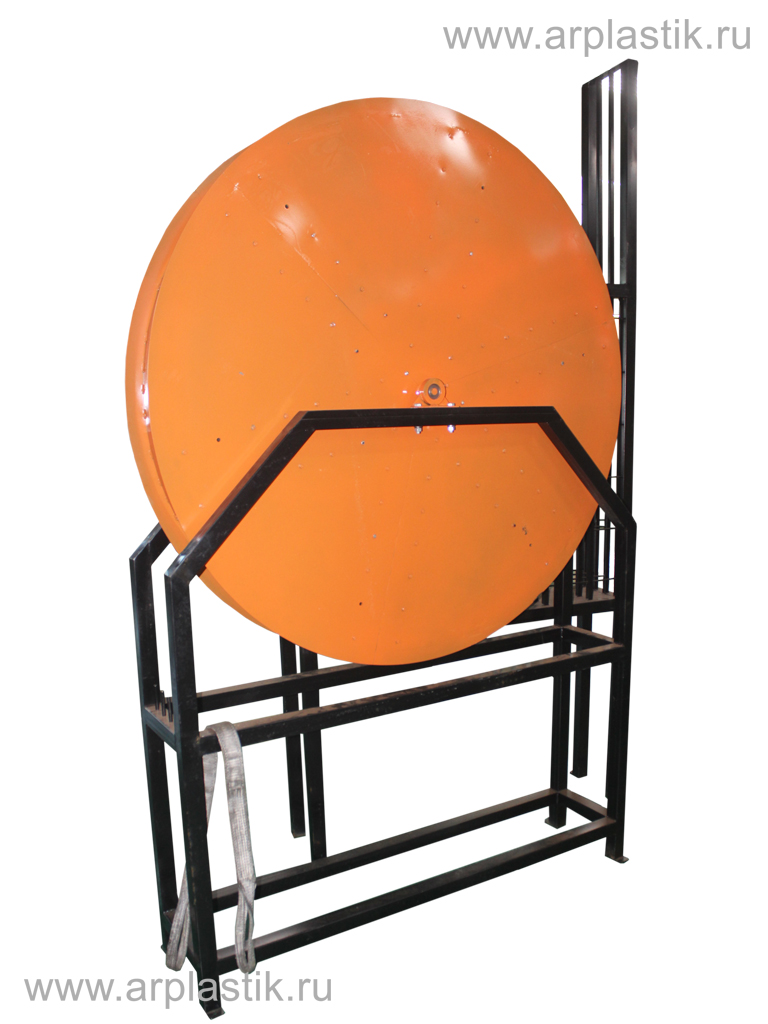

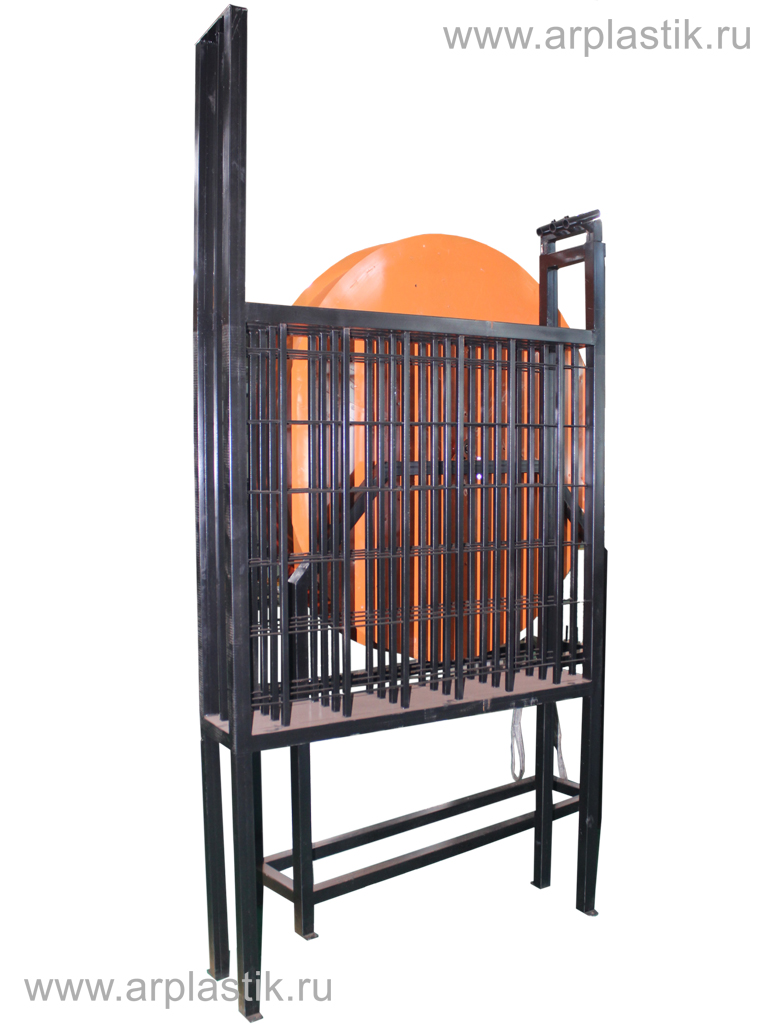

- Mesh coiler, 1 m, automatic (1 pcs);

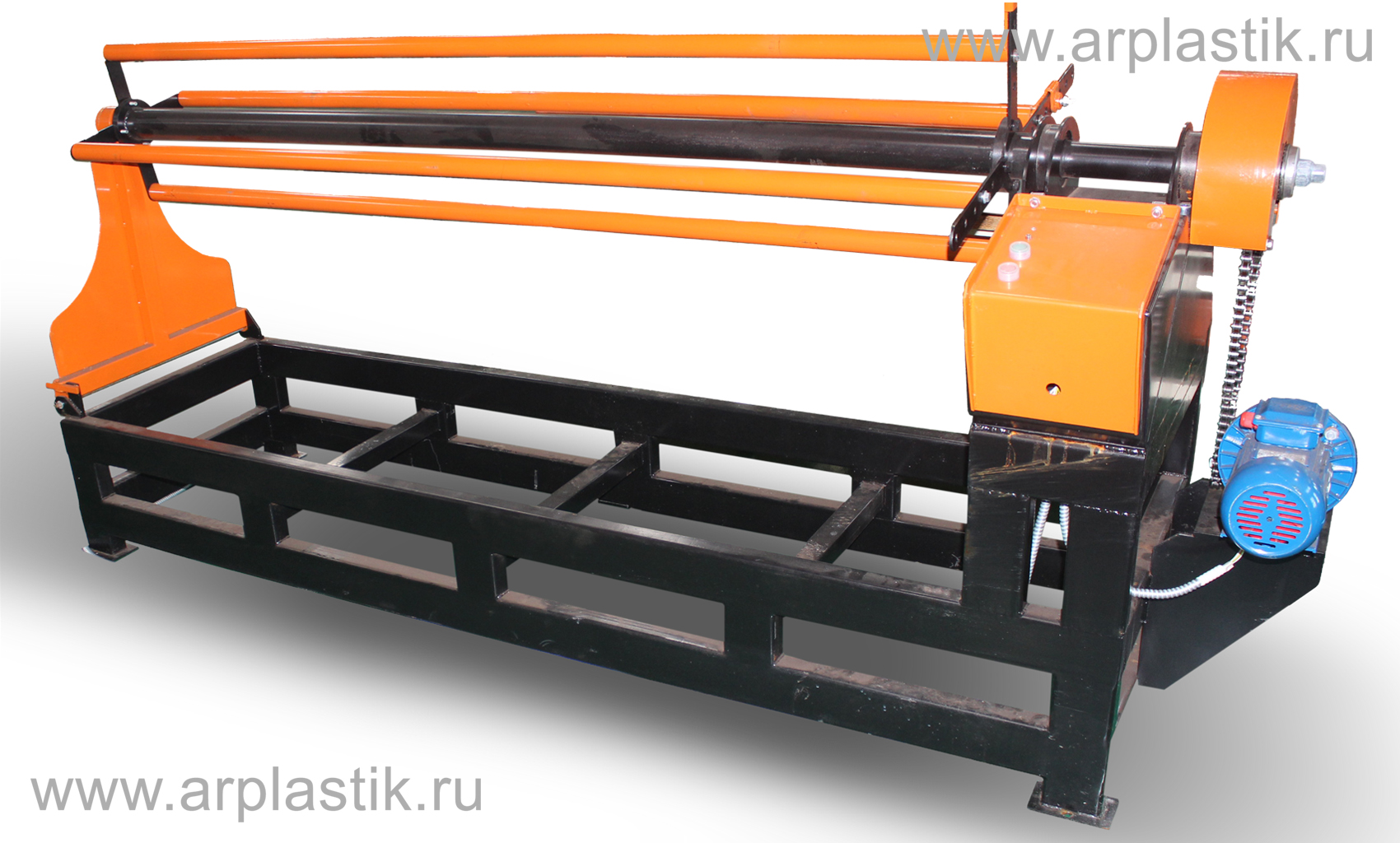

- Leveler (1 pcs);
- Manual (1 pcs).
Equipment specifications may vary depending on the model.
We also have the opportunity to supply the necessary raw materials for production!
We also have the opportunity to supply the necessary raw materials for production!
Materials used:
- Glass roving 2400/4800 Tex;
- Epoxy resin (type ED-20);
- MTGFA Iso Hardener;
- Accelerator control A. 01;
- A thread of Mylar LL-45 (plastic bobbin).
